Structural Frame & Lock-Up Sydney — From Slab to Weatherproof Shell
Slab and footings, timber or steel framing, roof installation, external cladding, and weatherproofing. From slab to weather-tight.
HIA Member
MBA NSW0476 300 300Quick Answer
Structural works cover slab/footings, framing (timber or steel), roofing, cladding, and weatherproofing. Lock-up is typically reached 8–16 weeks after slab completion. Steel framing costs 10–15% more than timber but eliminates termite risk. Lock-up triggers a 35% progress payment under NSW contracts.
From Slab to Weather-Tight
Structural works and lock-up are the stages where your build takes physical shape. Buildana manages slab and footing construction, timber or steel framing, structural engineer coordination, roof installation, external cladding, window and door fitting, and full weatherproofing.
Once lock-up is achieved, your building is weather-tight — internal trades can begin in a controlled environment, keeping your project on track regardless of weather. Lock-up is also a key progress payment milestone under NSW building contracts (typically 35% of contract value).
We build across Sydney — including Fairfield, Liverpool, Cumberland, Canterbury-Bankstown, and Blacktown LGAs — each with different soil conditions, wind ratings, and termite risk levels that influence structural design.
- Slab and footing construction
- Timber and steel framing options
- Structural engineer coordination
- Load path and connection verification
- Roof installation and flashing
- External wall cladding
- Window and door fitting
- Fascia, guttering, and weatherproofing
- Progress payment milestone certification

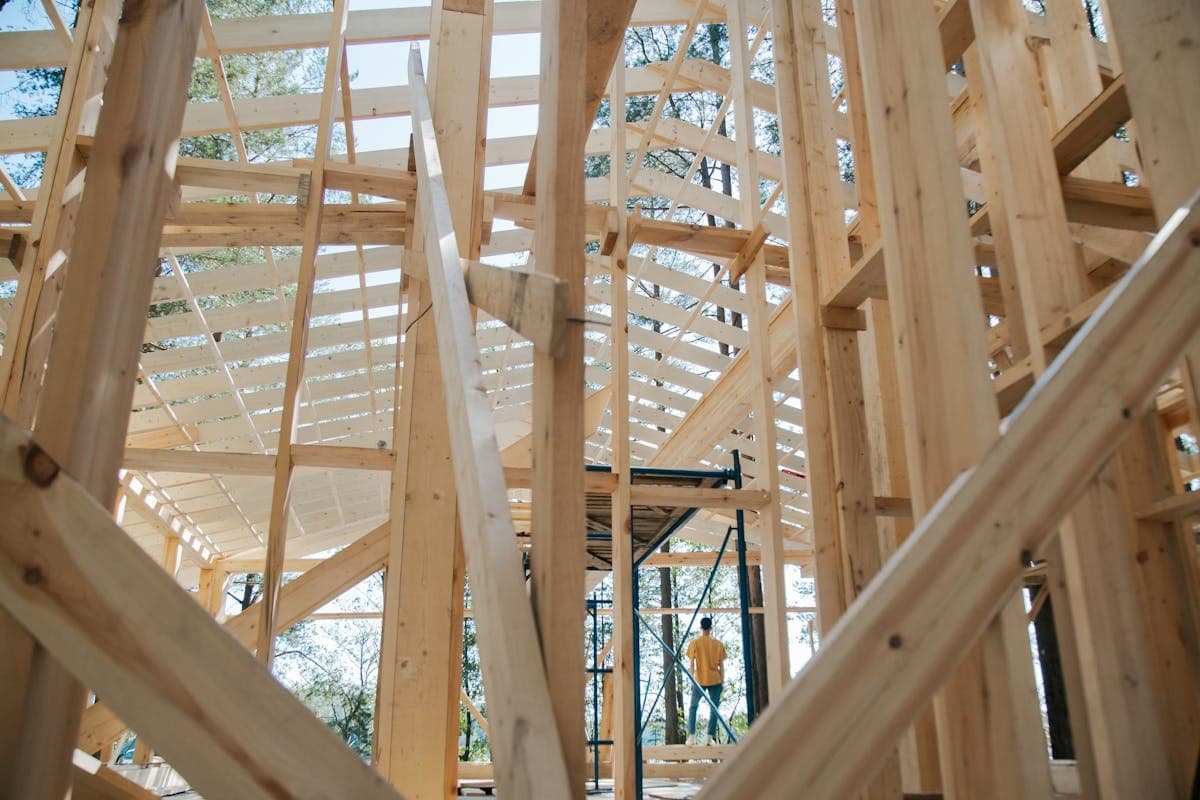

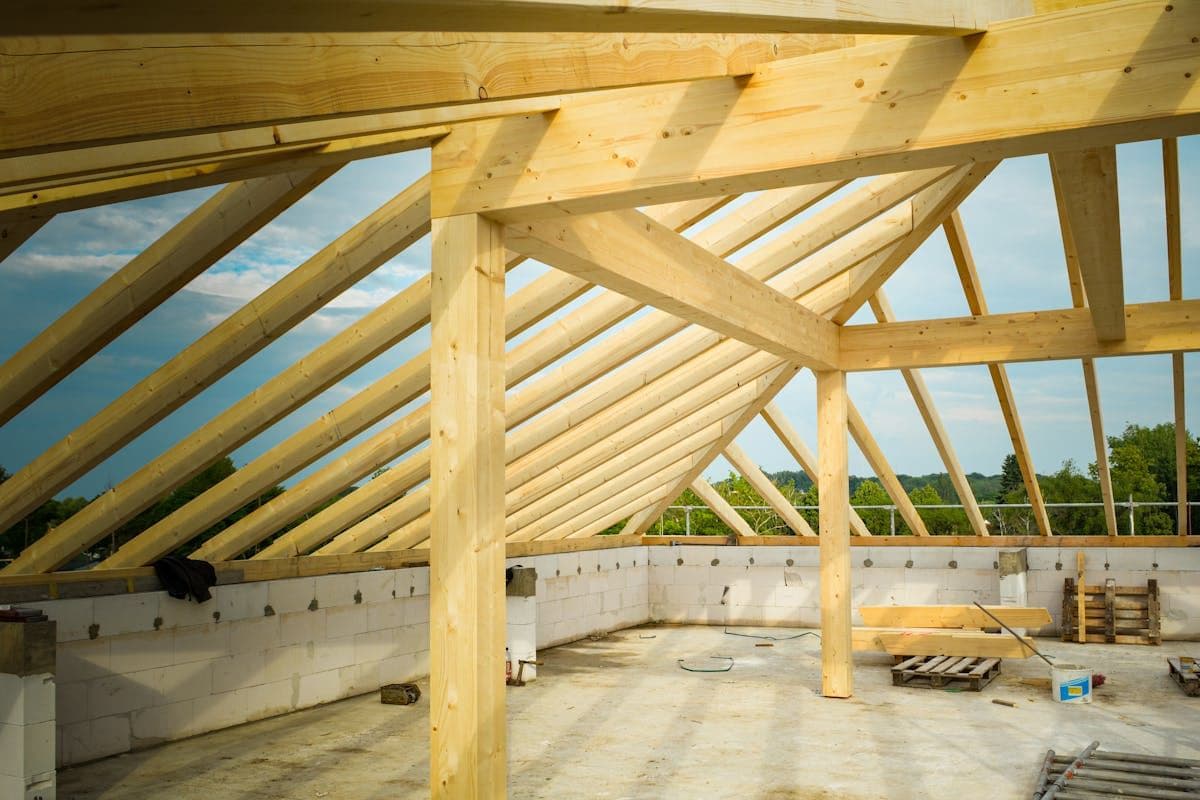

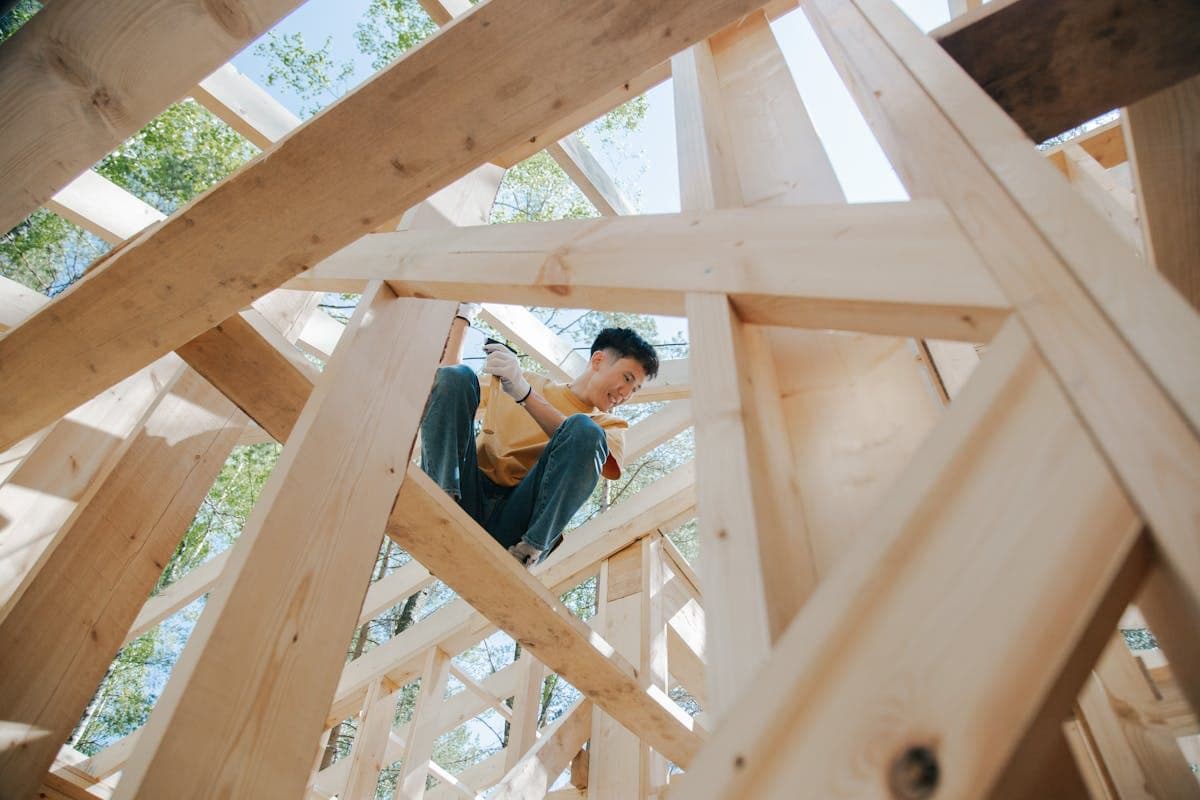

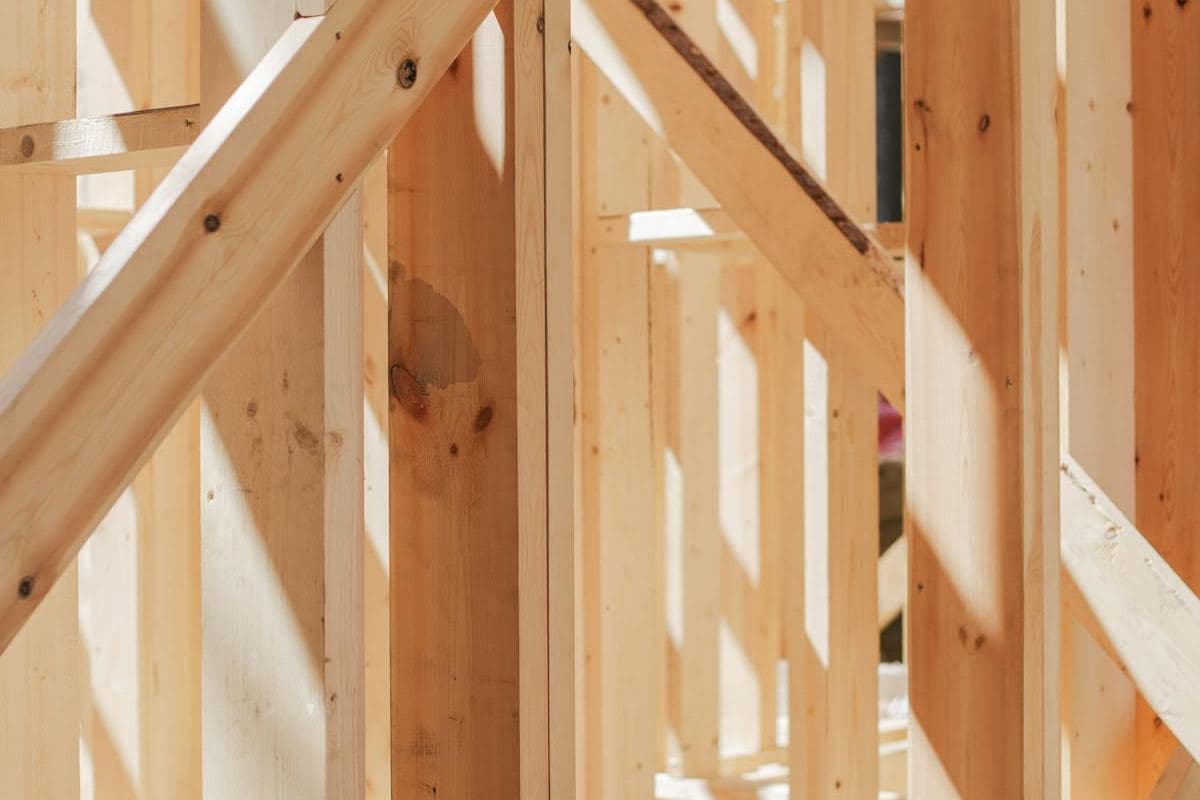

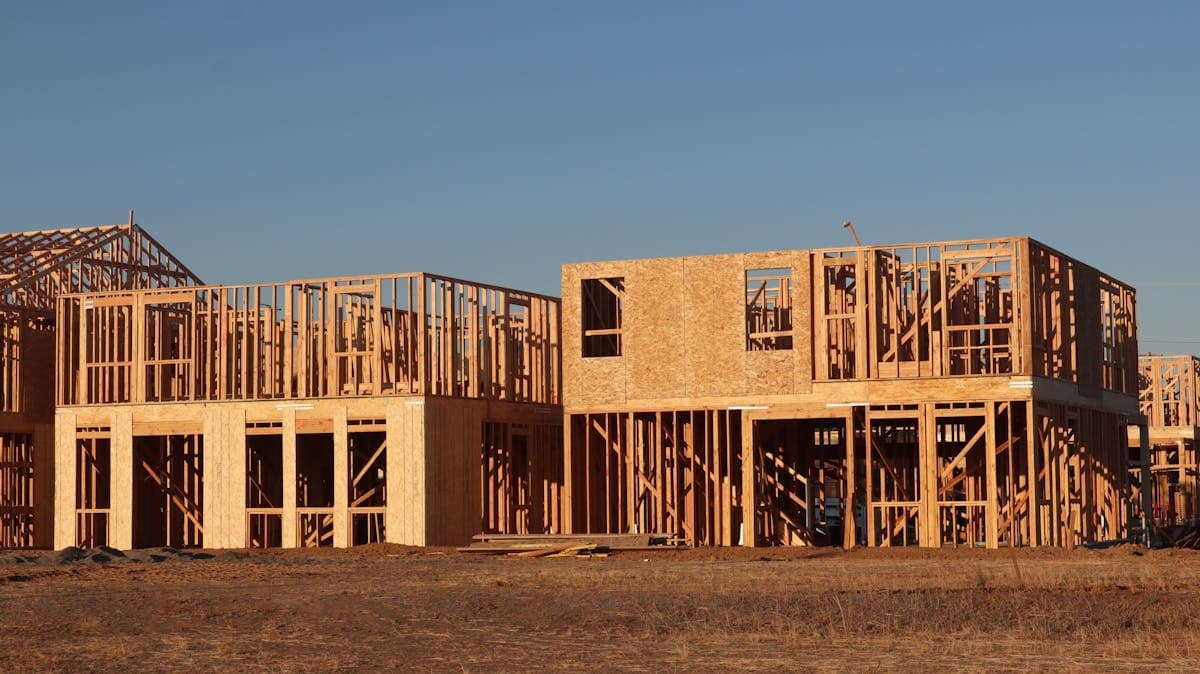

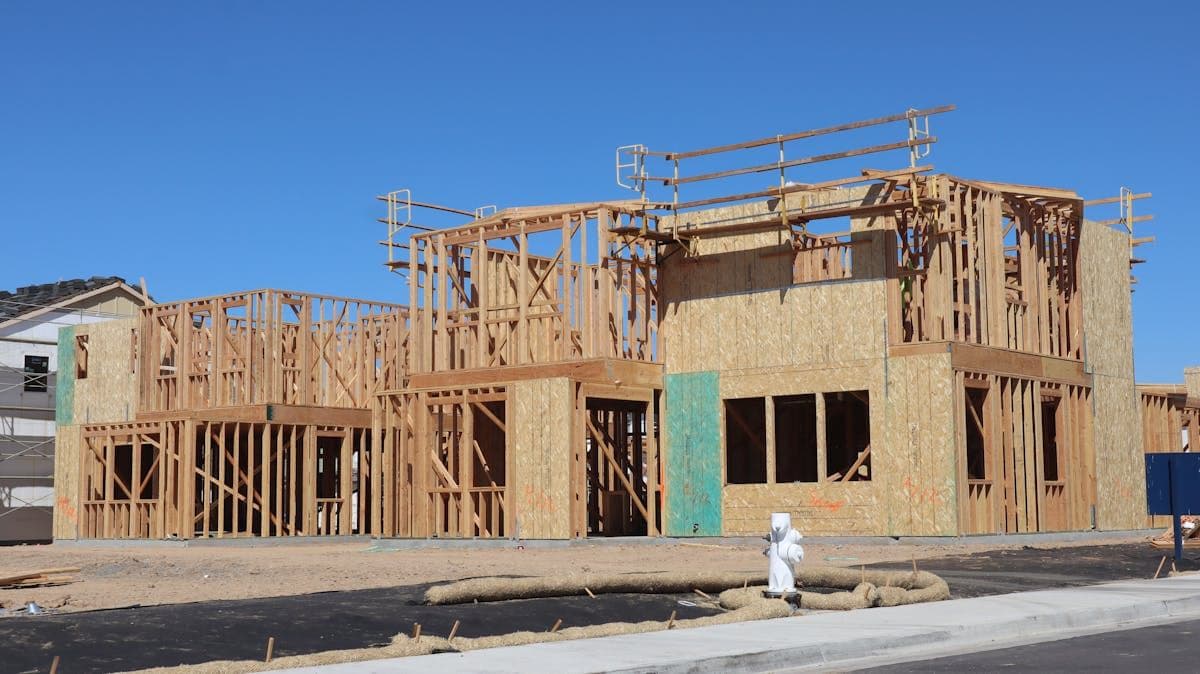

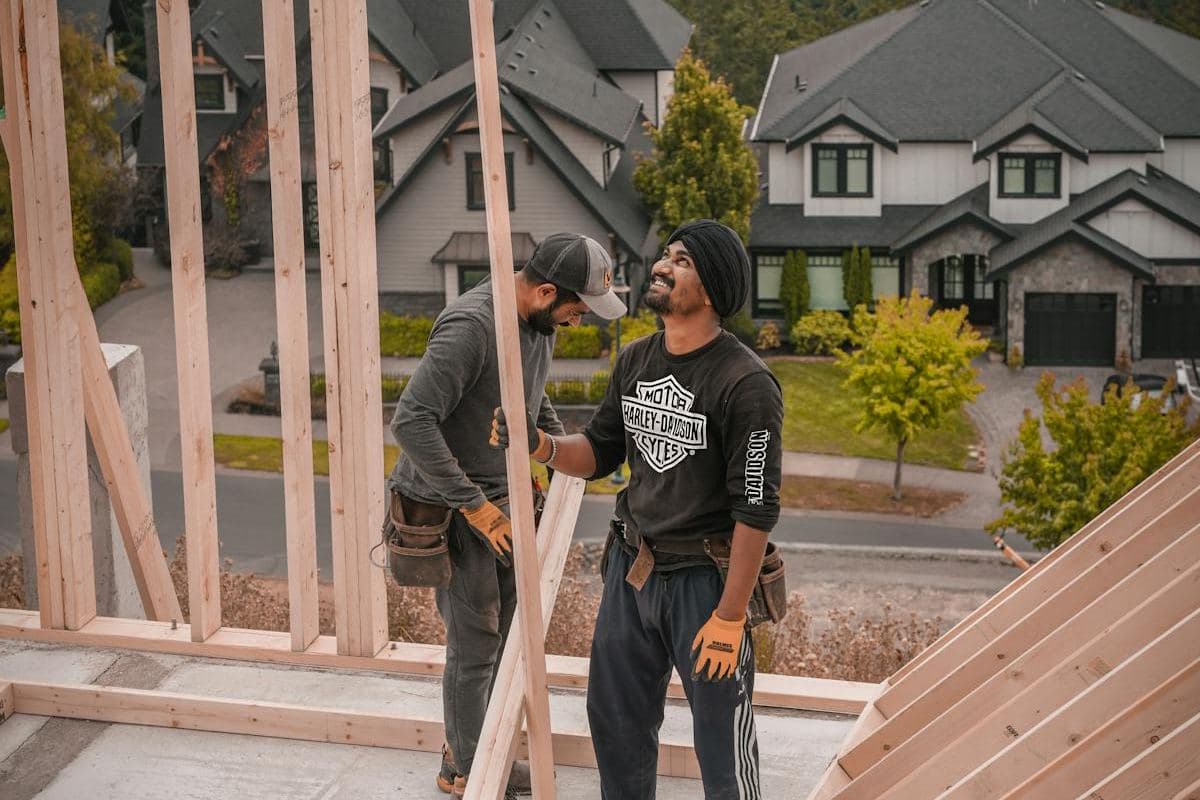

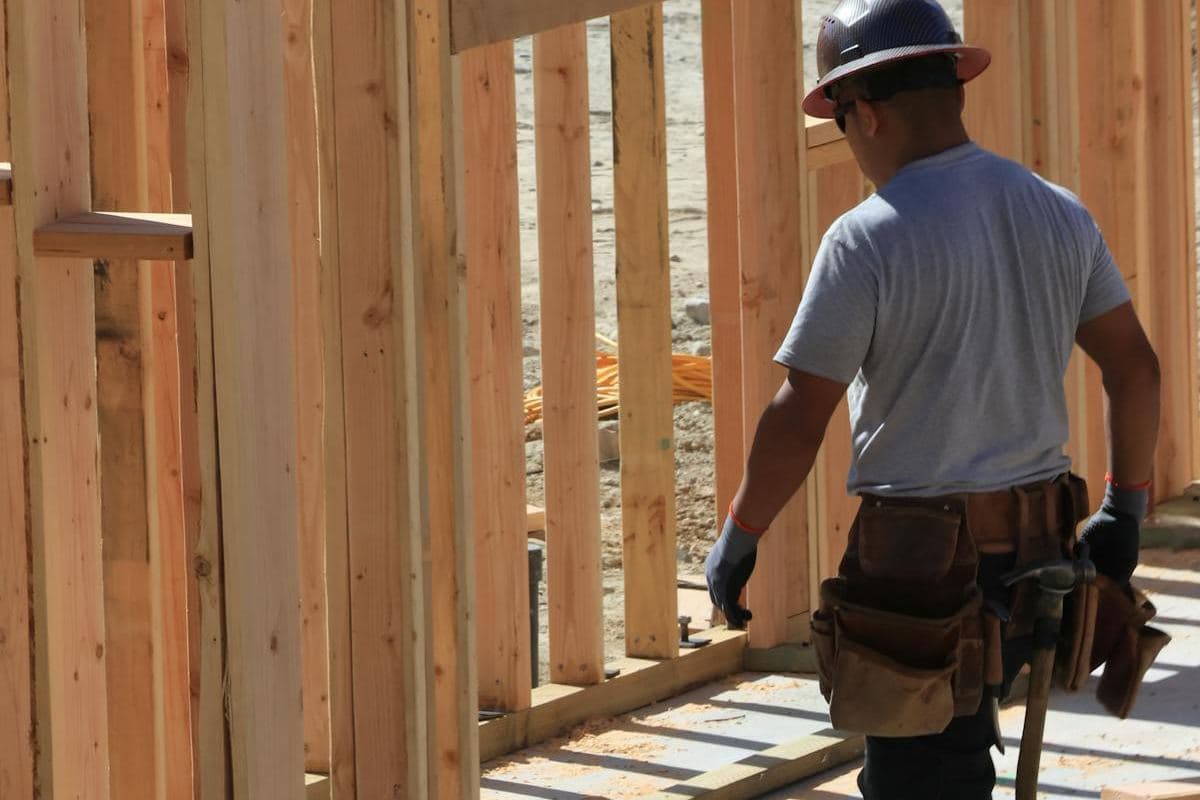

Framing & Structural Lockup
From slab to weatherproof shell — steel and timber framing, roof structure, and external cladding.
Concrete Slab
The slab is your home's foundation — and its design is driven by soil classification. Two main types are used across Western Sydney:
Waffle Pod Slab
Used on reactive clay sites (Class M/H). Polystyrene pods create a grid of concrete beams that accommodates ground movement. The most common slab type in Western Sydney.
Conventional Reinforced Slab
Used on stable sites (Class A/S). Traditional concrete slab with steel reinforcement mesh. Less common in Western Sydney but appropriate where soil conditions allow.
Both include: reinforcement, plumbing rough-in, vapour barrier, and engineering certification. Soil classification drives the choice — your geotech report determines which type your site needs.
Steel vs Timber Framing
| Factor | Timber (AS 1684) | Cold-Formed Steel (AS 4600) |
|---|---|---|
| Termite resistance | Requires chemical treatment in Western Sydney | Termite-proof — no treatment needed |
| Wall straightness | Some shrinkage and movement over time | Straighter walls, less shrinkage |
| Tradie availability | Excellent — most framers work in timber | Good — growing availability |
| Cost | Lower material cost | $10,000–$20,000 more (material) |
| Long spans | Limited without internal columns | Better for open-plan living |
Buildana uses both systems. The right choice depends on span requirements, termite risk, budget, and design. We recommend during the design phase.
From Frame to Weatherproof Shell
Windows & Glazing
BASIX glazing requirements (U-value and SHGC ratings) determine frame type and glass specification. Aluminium frames are most common in Western Sydney. NCC mandates minimum natural light to habitable rooms. Double glazing improves thermal performance but adds cost.
External Cladding & Facade
Brick veneer is the most common system in Western Sydney, followed by full brick, render, Colorbond, and architectural cladding. Post-Grenfell NCC changes have tightened fire rating requirements for all external cladding systems.
Frame Inspection
Mandatory certifier inspection after frame is complete but before internal cladding. The certifier checks structural compliance, bracing, tie-downs, and window/door openings against engineering drawings. If anything doesn't pass, it must be rectified before proceeding.

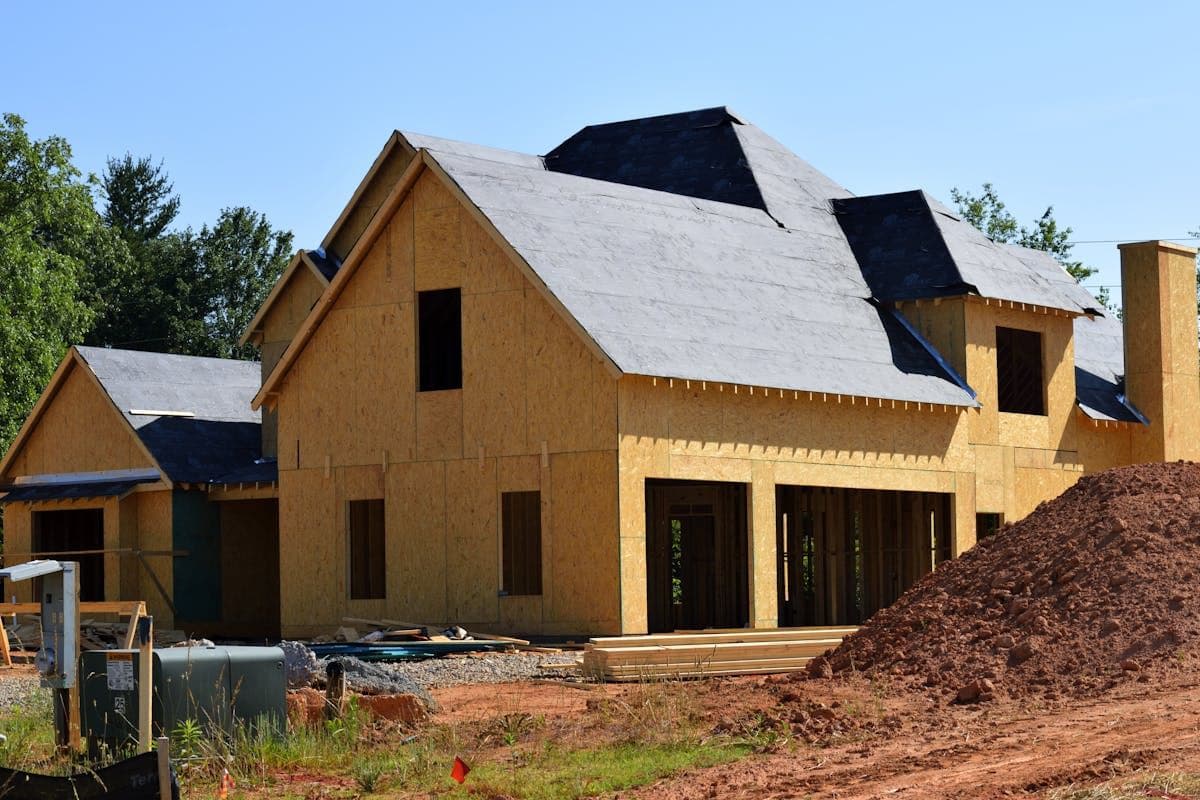

Lock-Up Milestone
Lock-up means the building is weatherproof — roof on, windows in, external cladding complete. Typical timing: 8–14 weeks from slab pour. A progress payment is due at lock-up stage as per the building contract.
Have a question about your project?
Talk to our team — free site assessment and fixed-price quote.
How It Works
From First Call to Final Key
Footings excavated per structural engineer's specifications. Footing inspection by certifier before concrete pour. Reinforcement placed and tied.
⏱Slab type as per geotech and structural engineer (waffle pod, raft, or suspended). Concrete poured, vibrated, and finished. Curing period before framing.

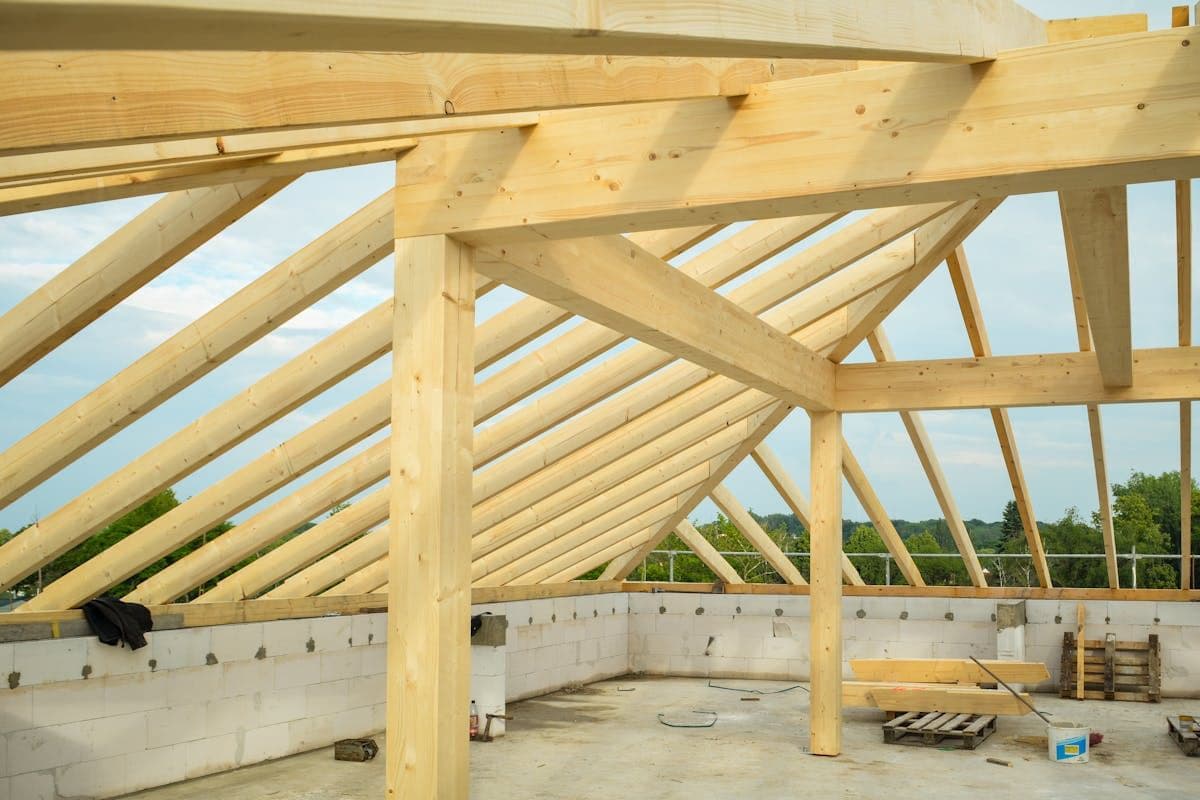

⏱Wall and roof frames erected — timber or steel as specified. Bracing, tie-downs, and connections installed per engineering. Frame inspection by certifier.

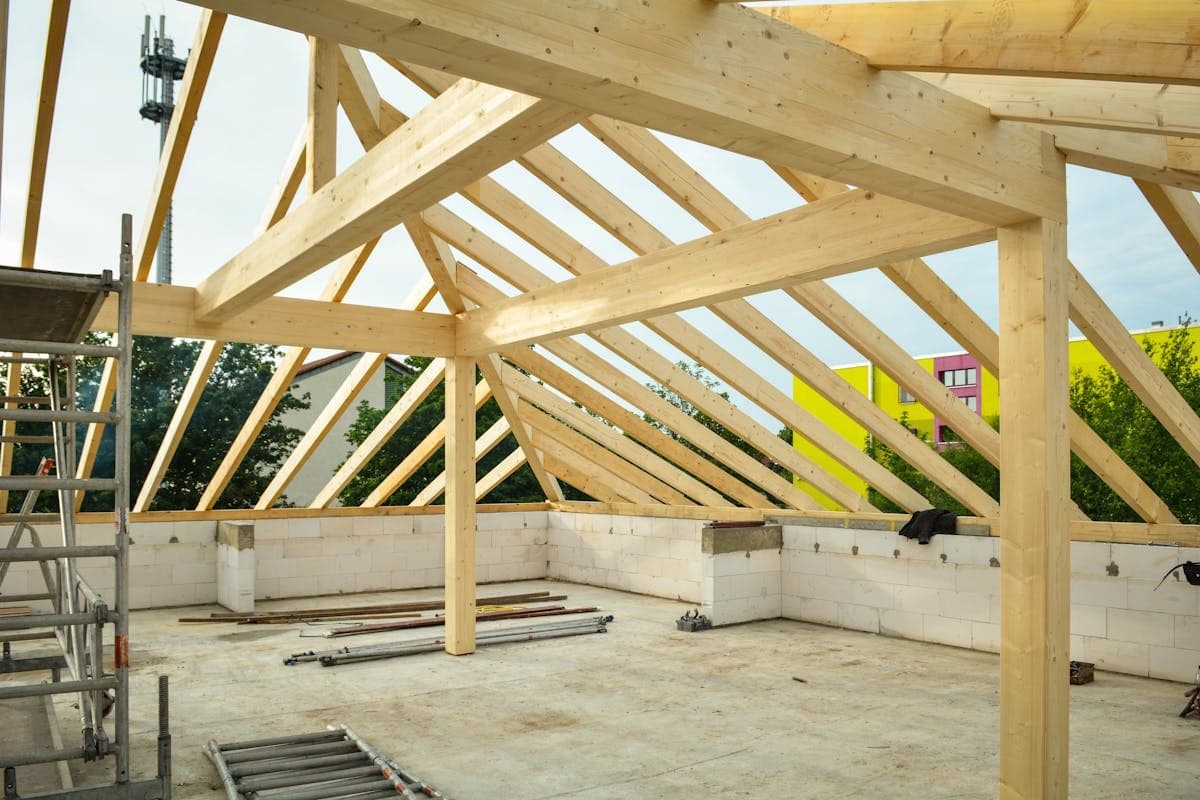

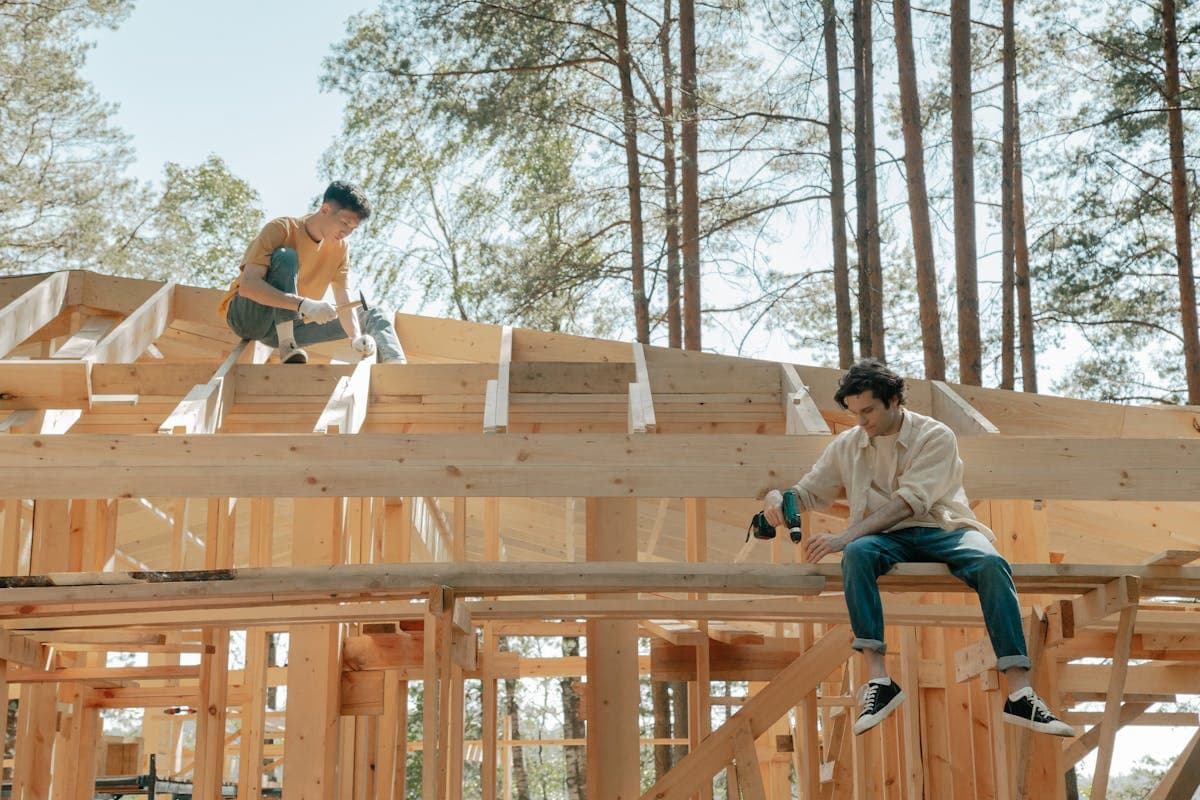

⏱Roof sheeting (Colorbond or tiles), sarking, flashing, and guttering installed. Building is now protected from weather above.
⏱External wall cladding installed (brick, render, Hebel, composite). Windows and external doors fitted. Building is now weather-tight — lock-up achieved.
⏱Our Team
Oliver Alameri
Founder / Director / Builder
Ahmad Alameri
Accounts Manager
Claire Wendell
Project Manager
Estimate Your Build Cost
Use our free calculator to get an instant cost estimate for your project
Cost Guide
| Item | Estimated Range |
|---|---|
| Waffle pod slab (per m²) | $100 – $140 |
| Raft slab — reactive soil (per m²) | $140 – $200 |
| Timber framing (per m²) | $45 – $70 |
| Steel framing (per m²) | $55 – $85 |
| Colorbond roofing (per m²) | $40 – $65 |
| Brick veneer cladding (per m²) | $120 – $200 |
Prices are indicative for Western Sydney (2025). Actual costs depend on site, specifications, and approvals.
